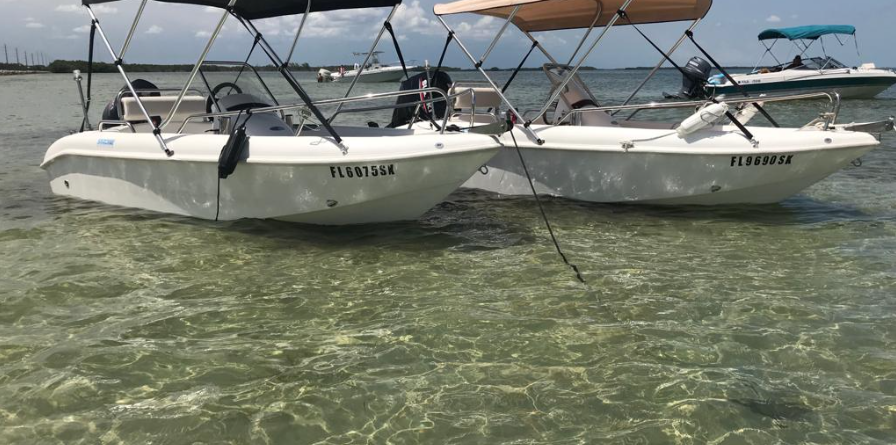

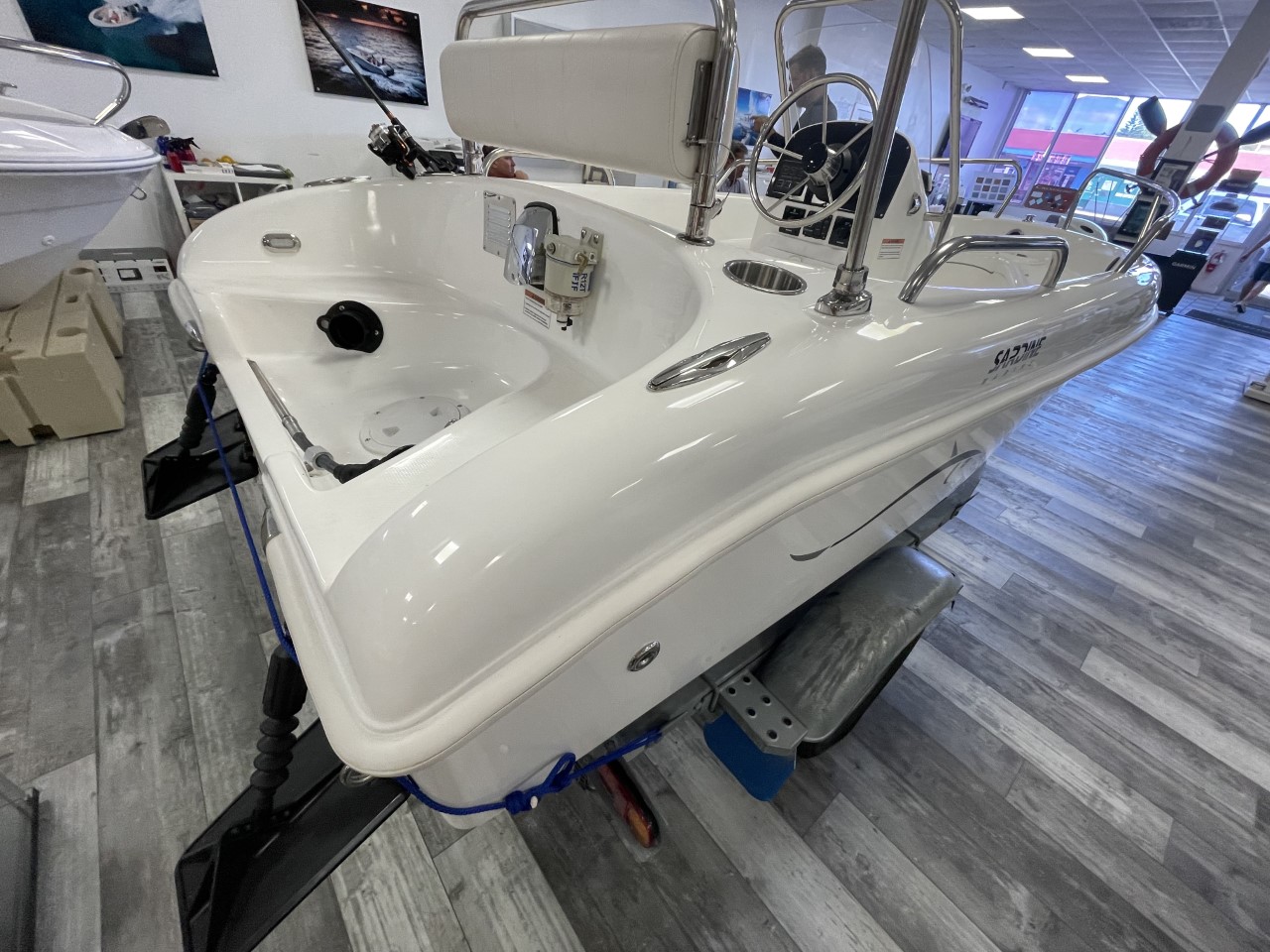

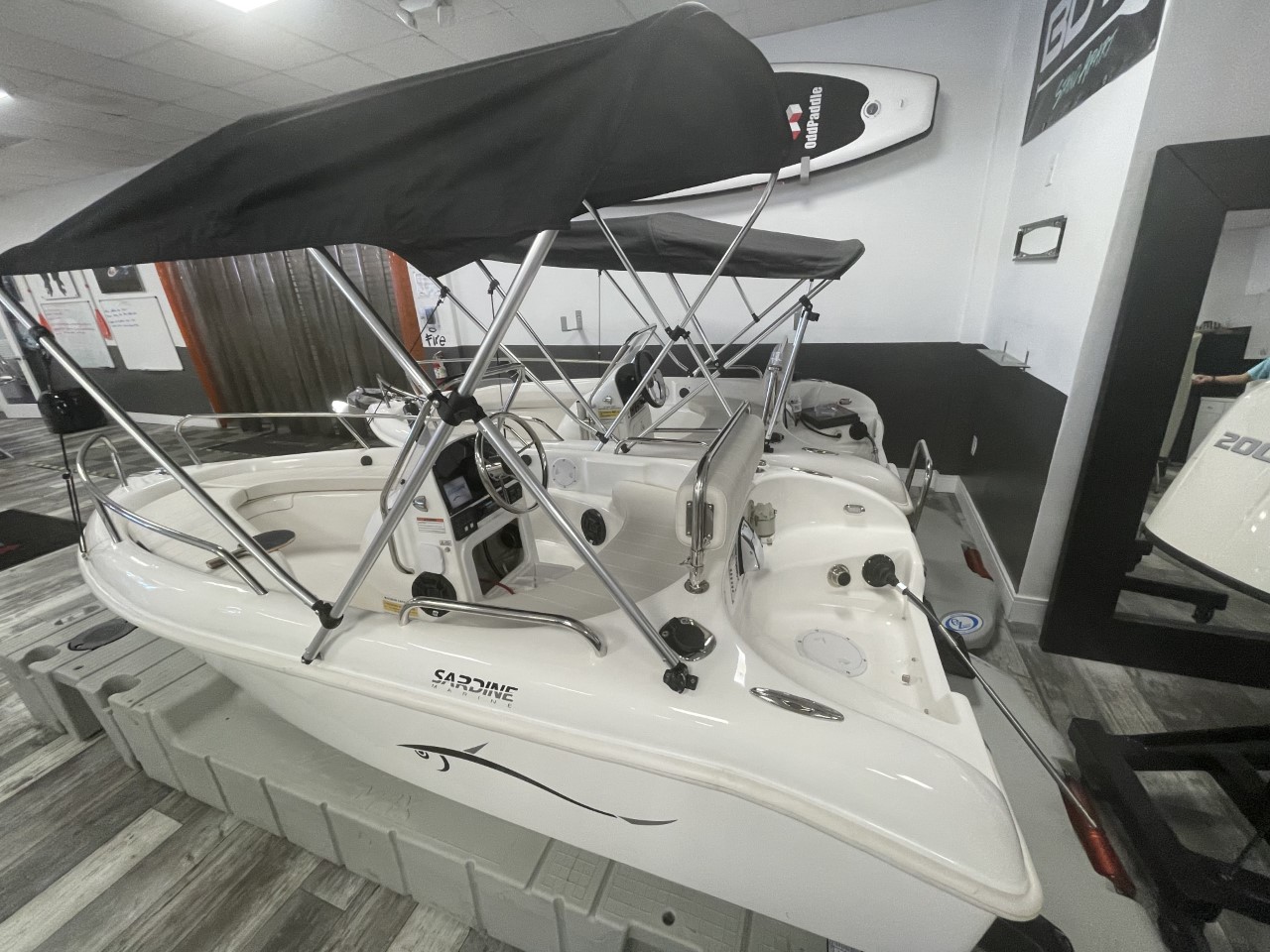

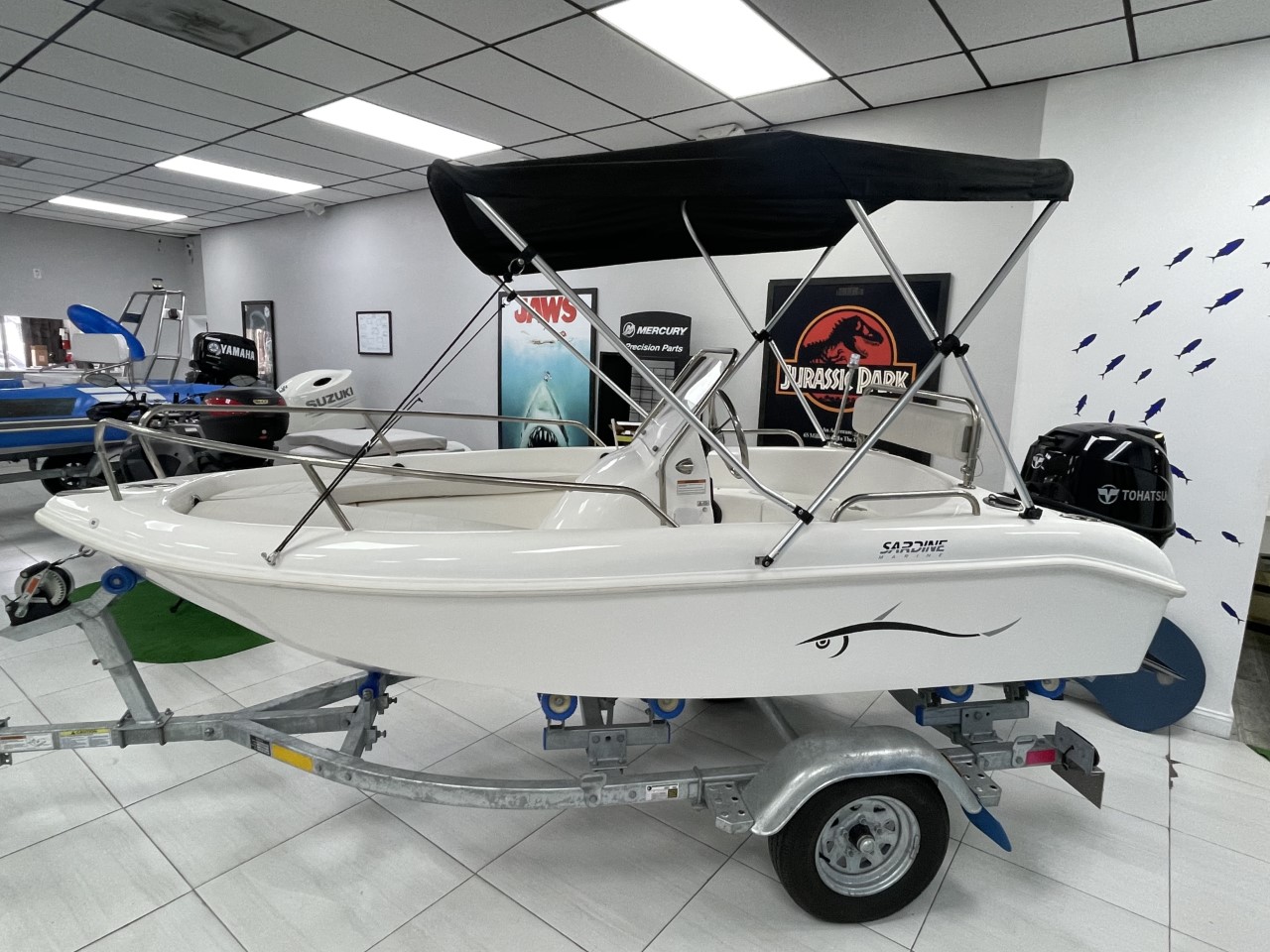

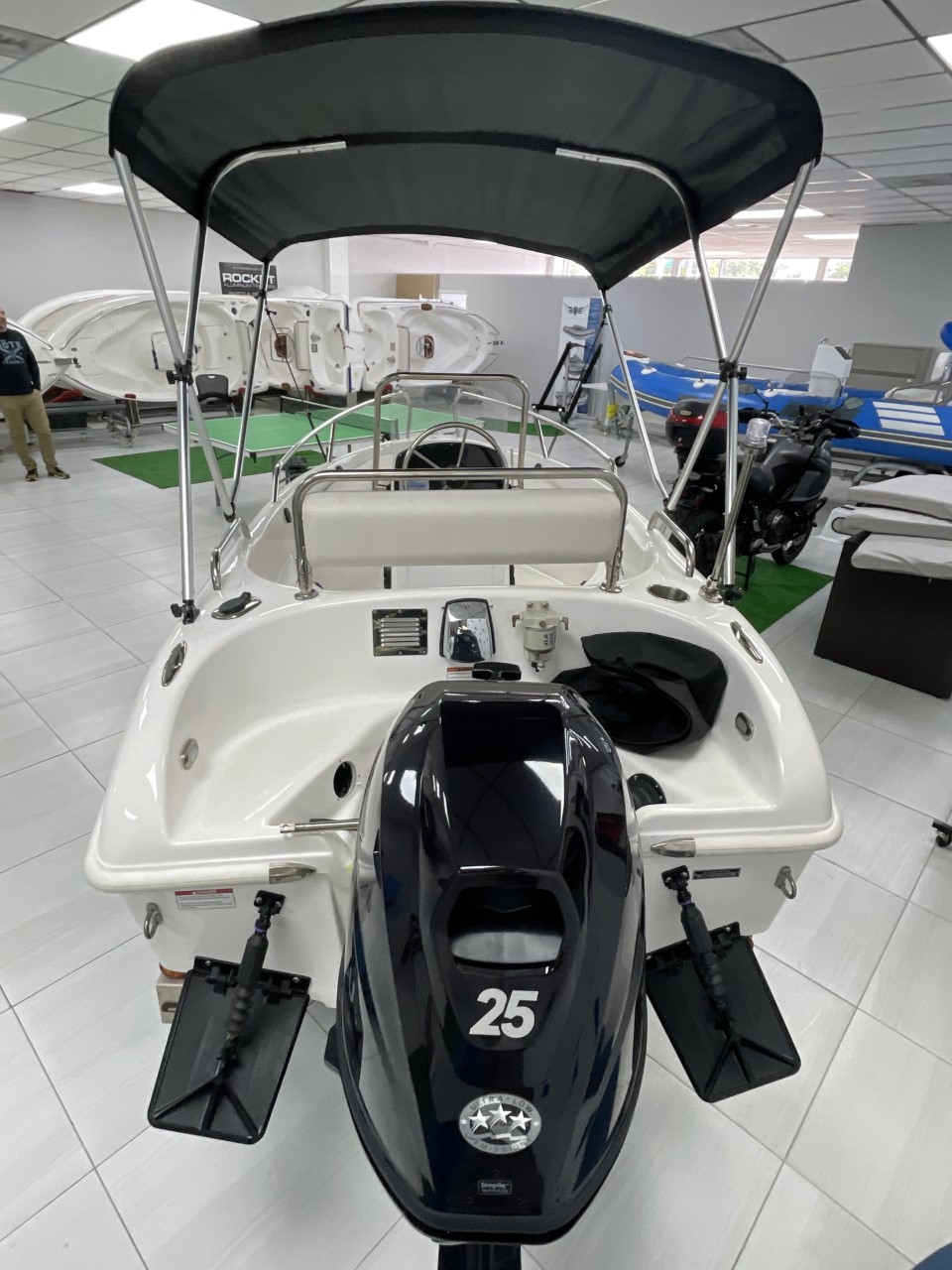

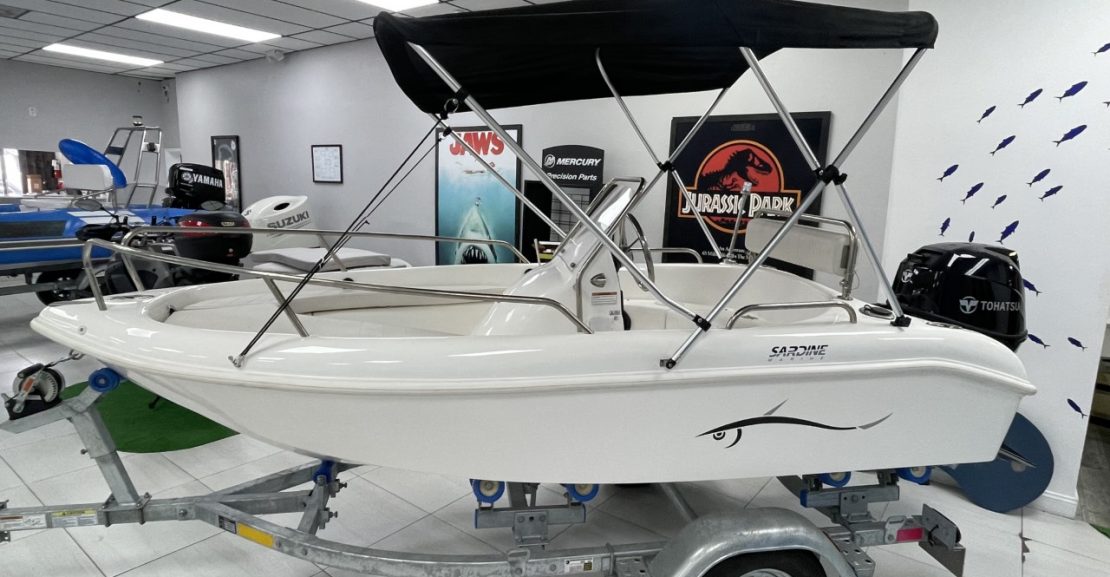

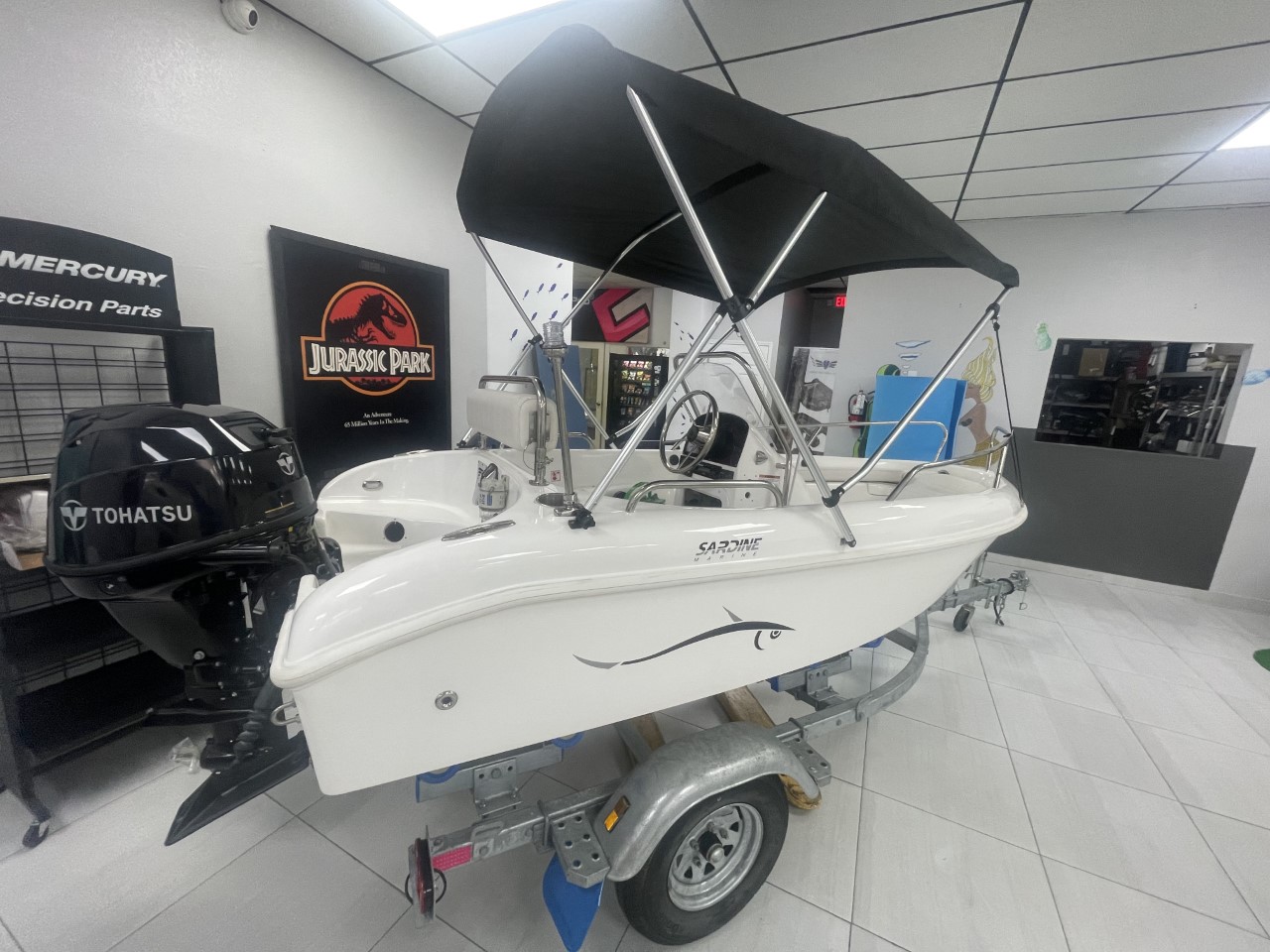

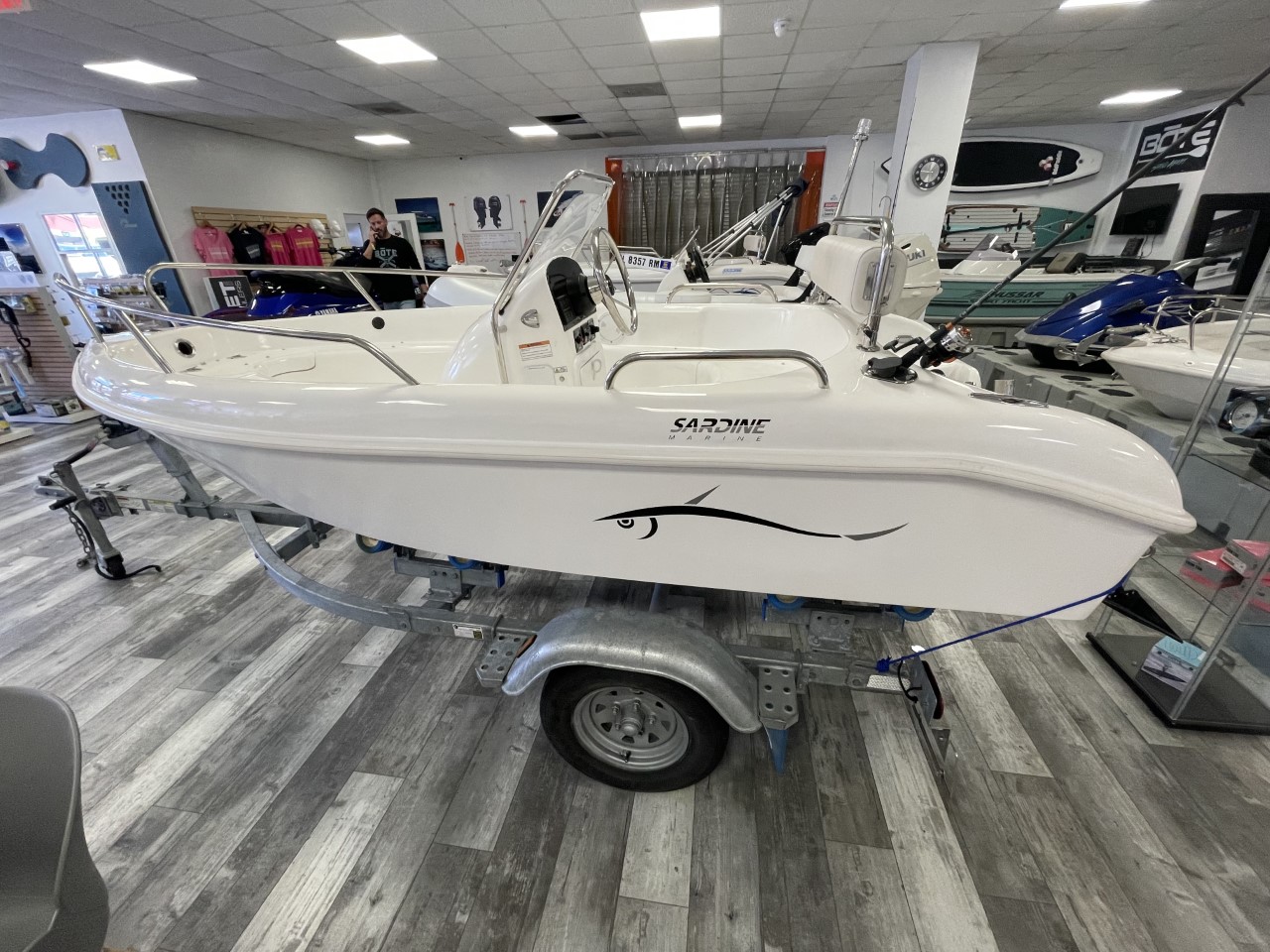

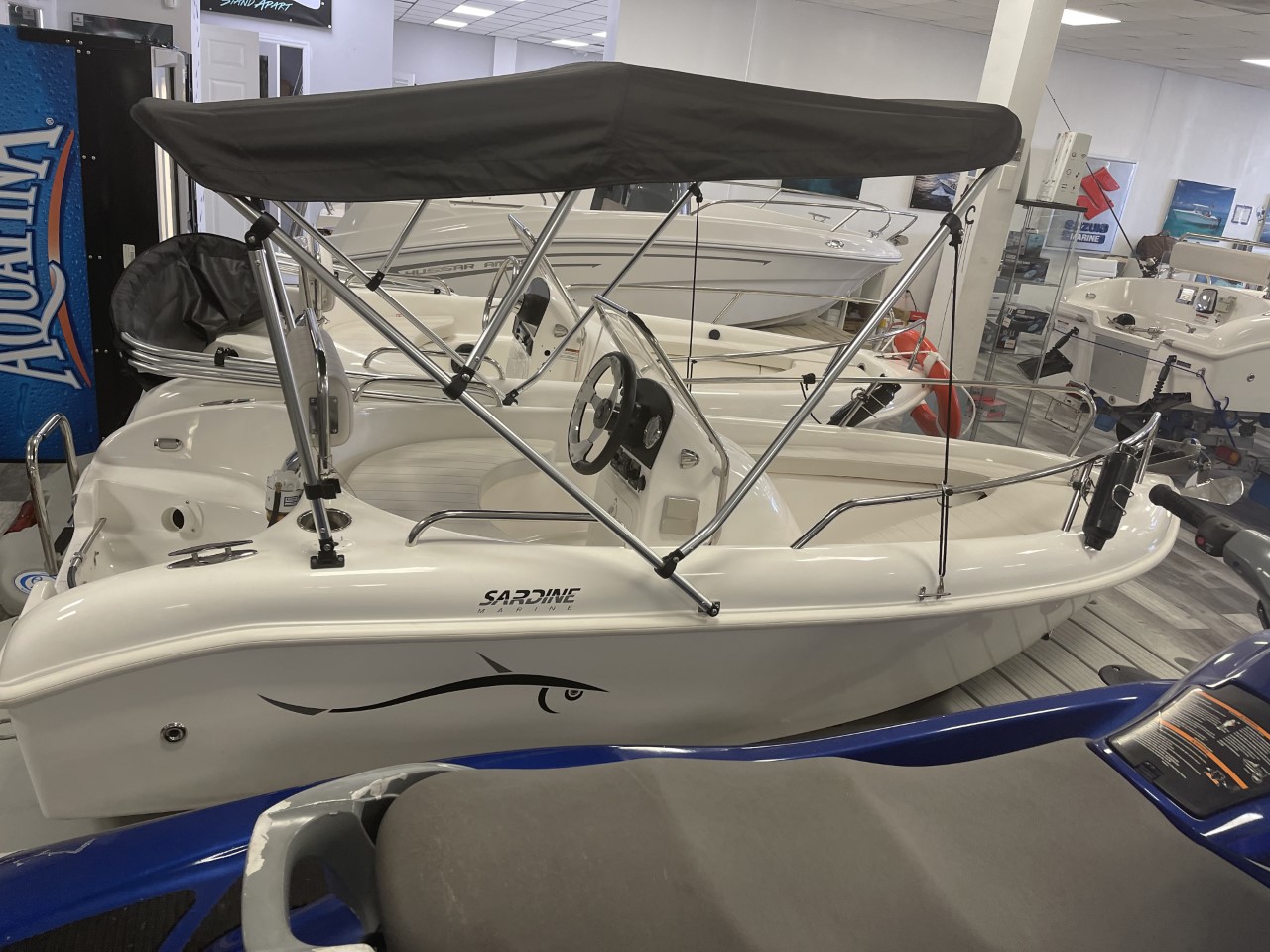

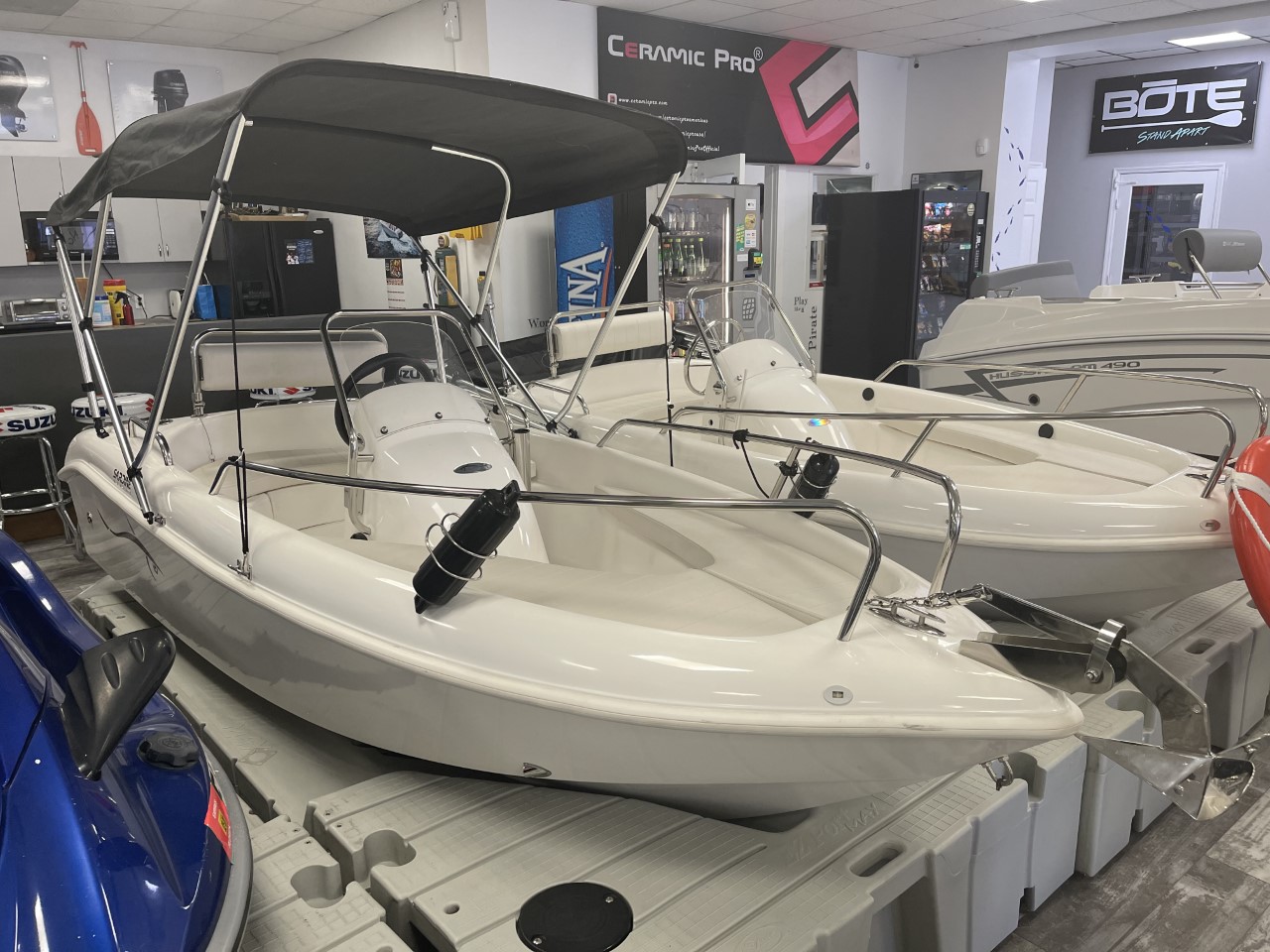

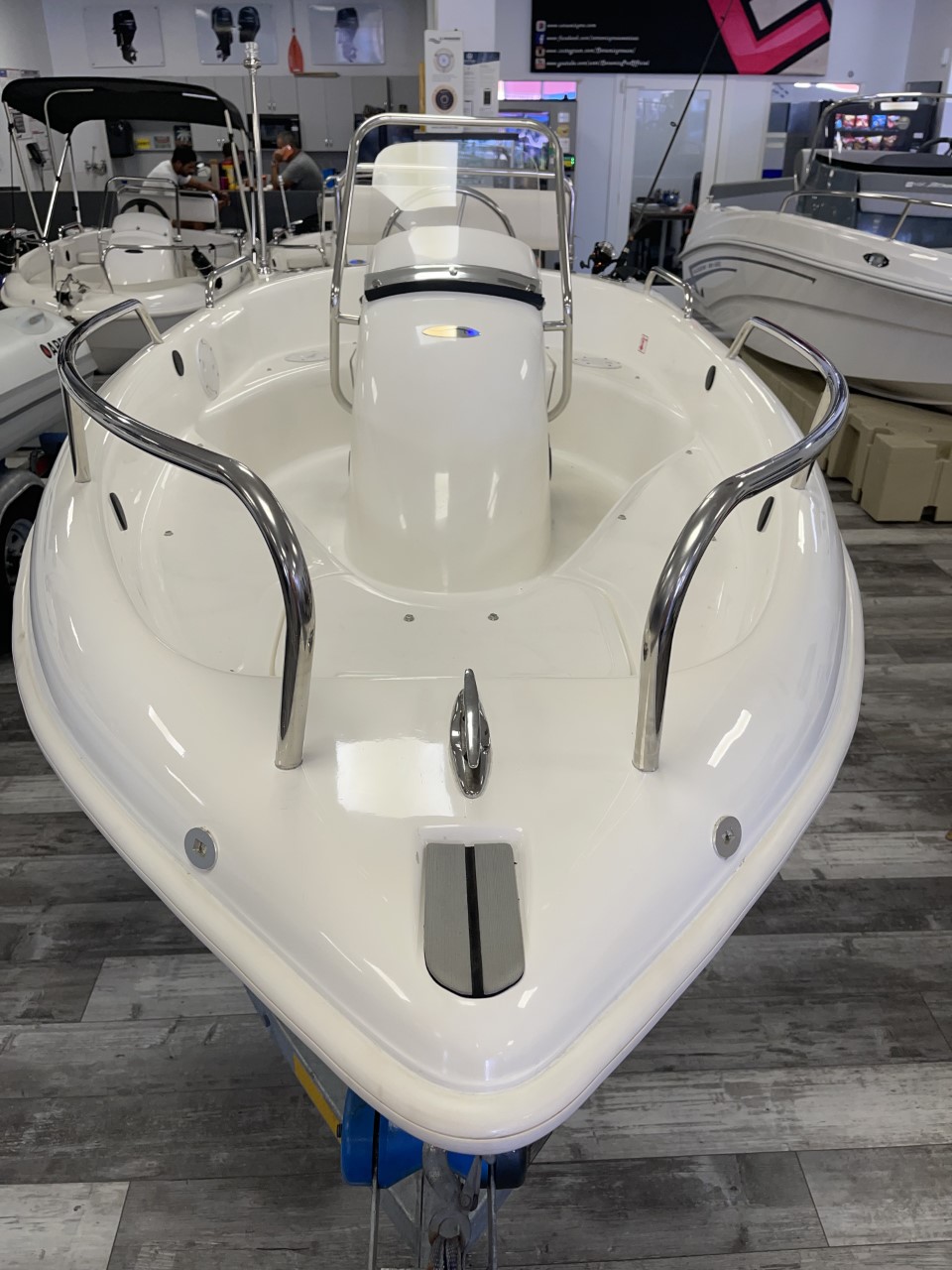

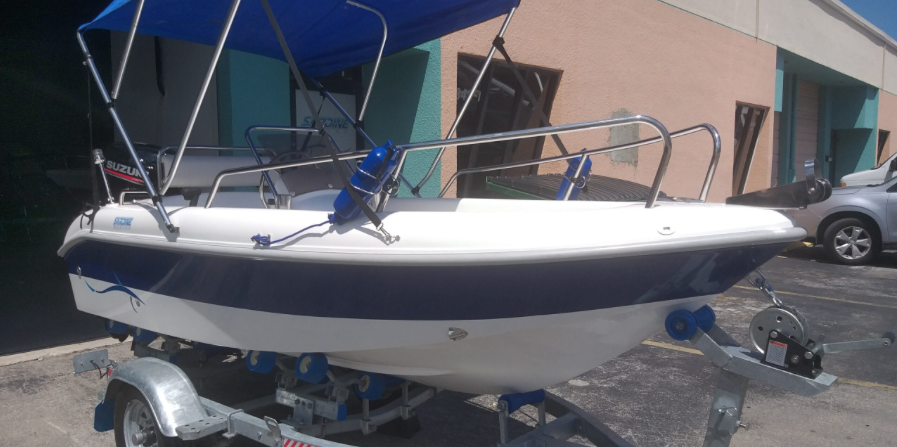

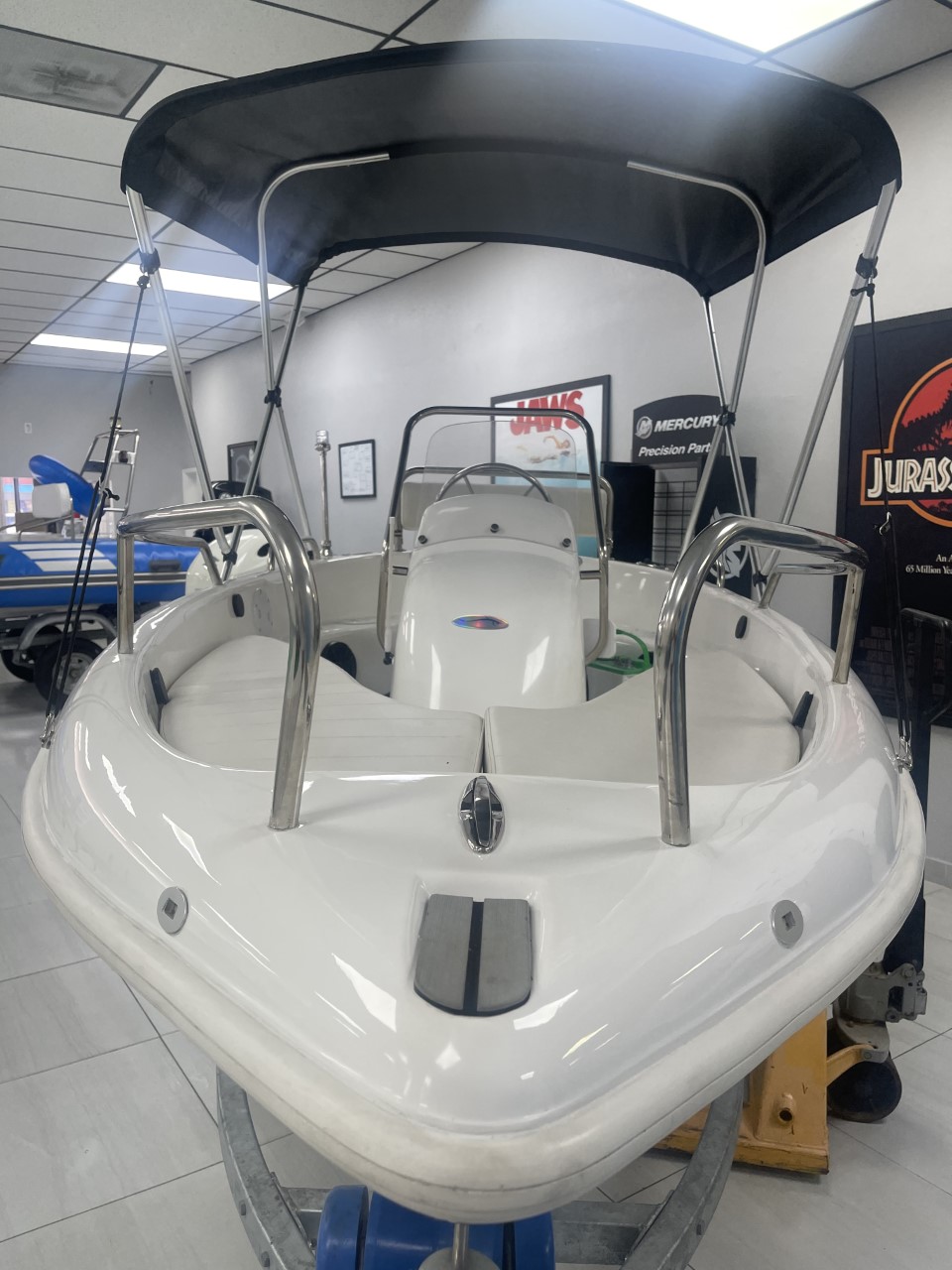

2019 Sardine Marine SD-12

***AMERICAN MADE***
—–
BOAT CONSTRUCTION
One-piece Center Console Fused to Deck

Fiberglass Hull, Deck and Console

Higher Second Back up Transom

3-year Structural Hull Warranty

Variable Deadrise Deep V Hull

Self-Bailing Non-Skid Decks

Closed-Cell Foam Flotation

White Gelcoat Hull Color

—–
SAFETY COMPONENTS
3″ 316 SST Hood Fuel Vapor Vent

Floating Waterproof First Aid Kit

All Around Rubber Bumper Rail

316 Louvered Upper Vent

Marine Fire Extinguisher

Warning Decals x3

—–
316 GRADE STAINLESS STEEL COMPONENTS
Console Louvered Battery Vents x2

Rod Holder Flush Mounted

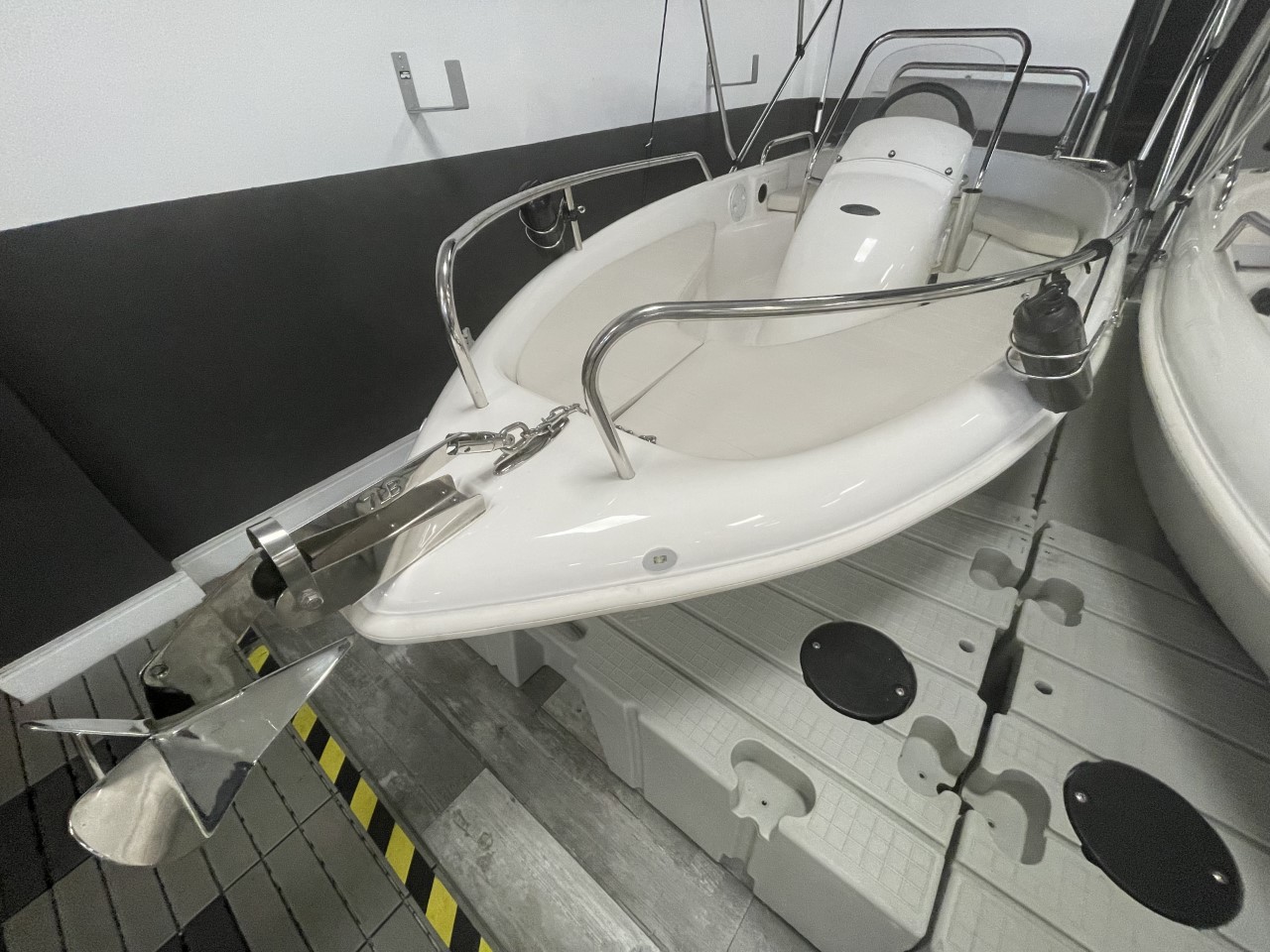

Bow Anchor Holder/Roller

Bow and Stern U-Bolts x3

Compartments Hinges x4

1” Thru Hull 1 Bilge Pump

Eye Bolt Anchor Rope Tie

Welded Back Grab Bar x2

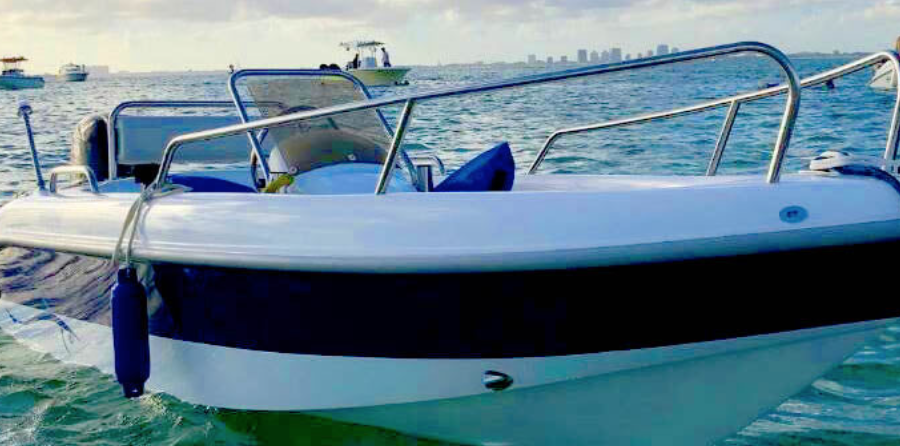

Welded Split Bow Rail x2

6″ Retractable Cleats x3

Deck Drains x2

—–
ELECTRICAL COMPONENTS
Battery General Disconnect Switch Enclosure

All Marine Heat Shrinks Electrical Connectors

40 Amps General Circuit Manual Reset Fuse

Switch for Manual/Automatic Bilge Pump

750 GPH Bilge Pump with Integral Float

All Marine Grade Tinned Electrical Wire

Blue LED lights with 316 SST Cover x3

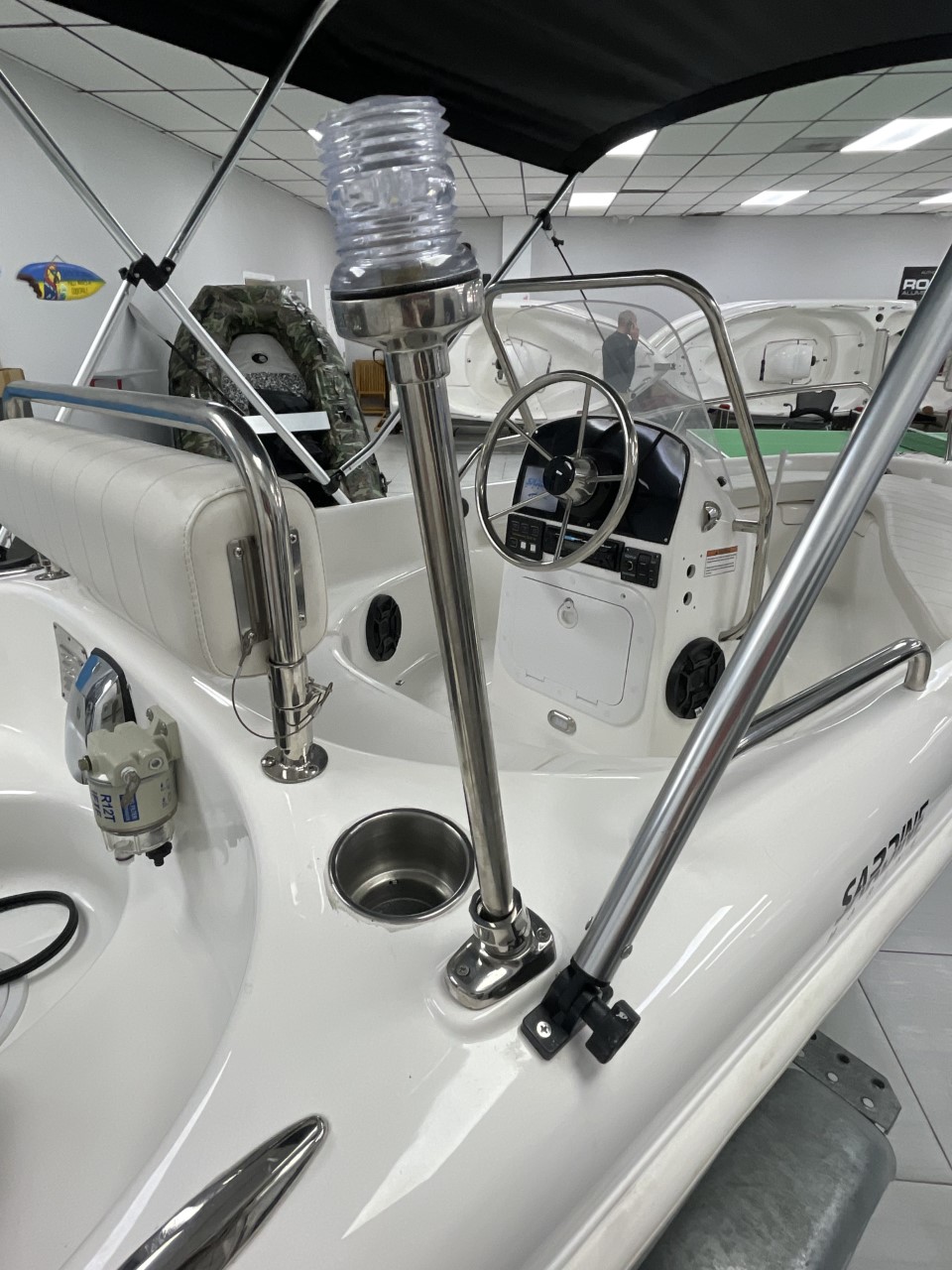

316 SST Post White LED Anchor Light

Circuit Control Relay BoxEenclosure

Navigation LED Lights x2

Main Multiple Switch

Negative Bus Bar

—–

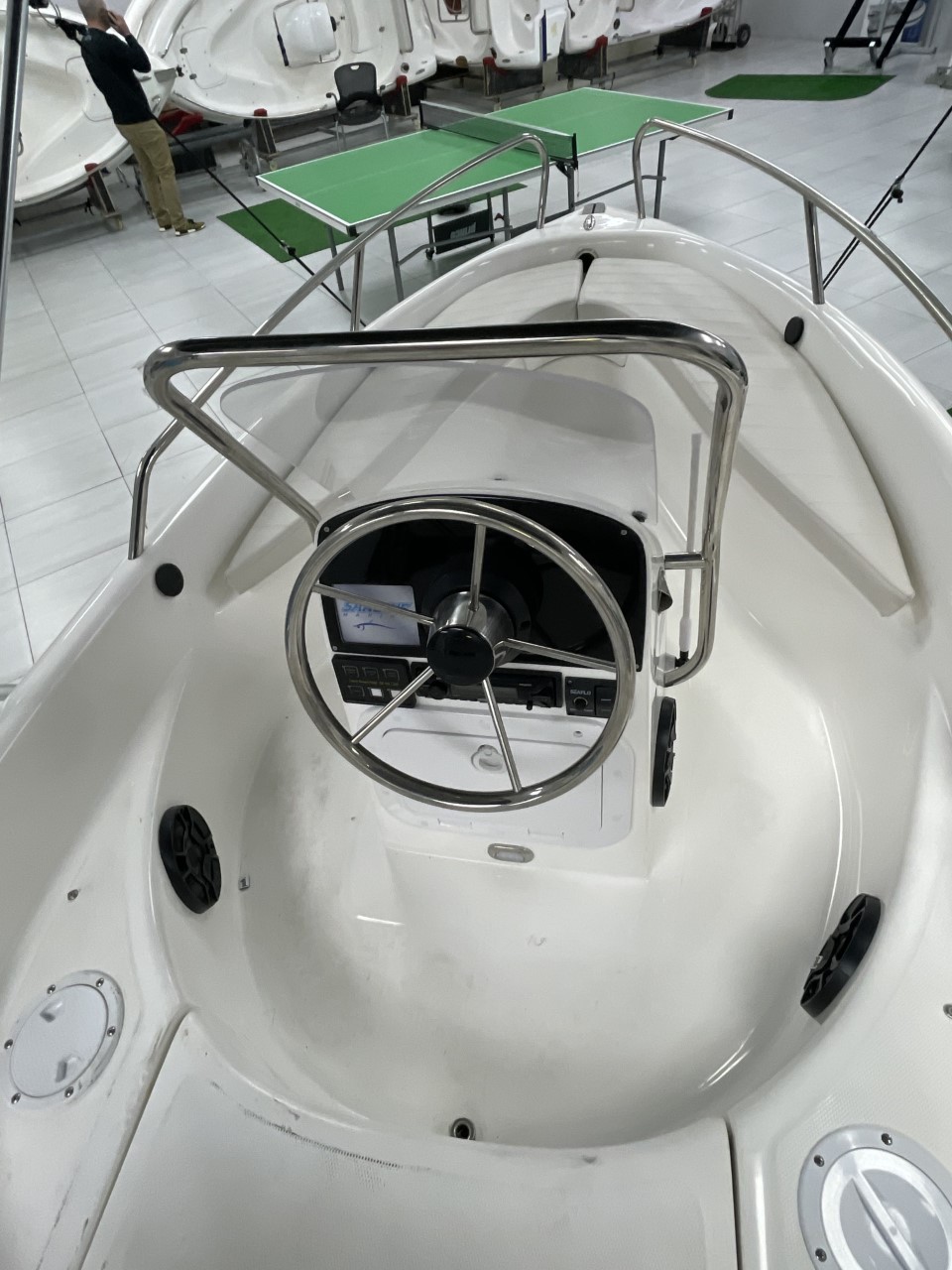

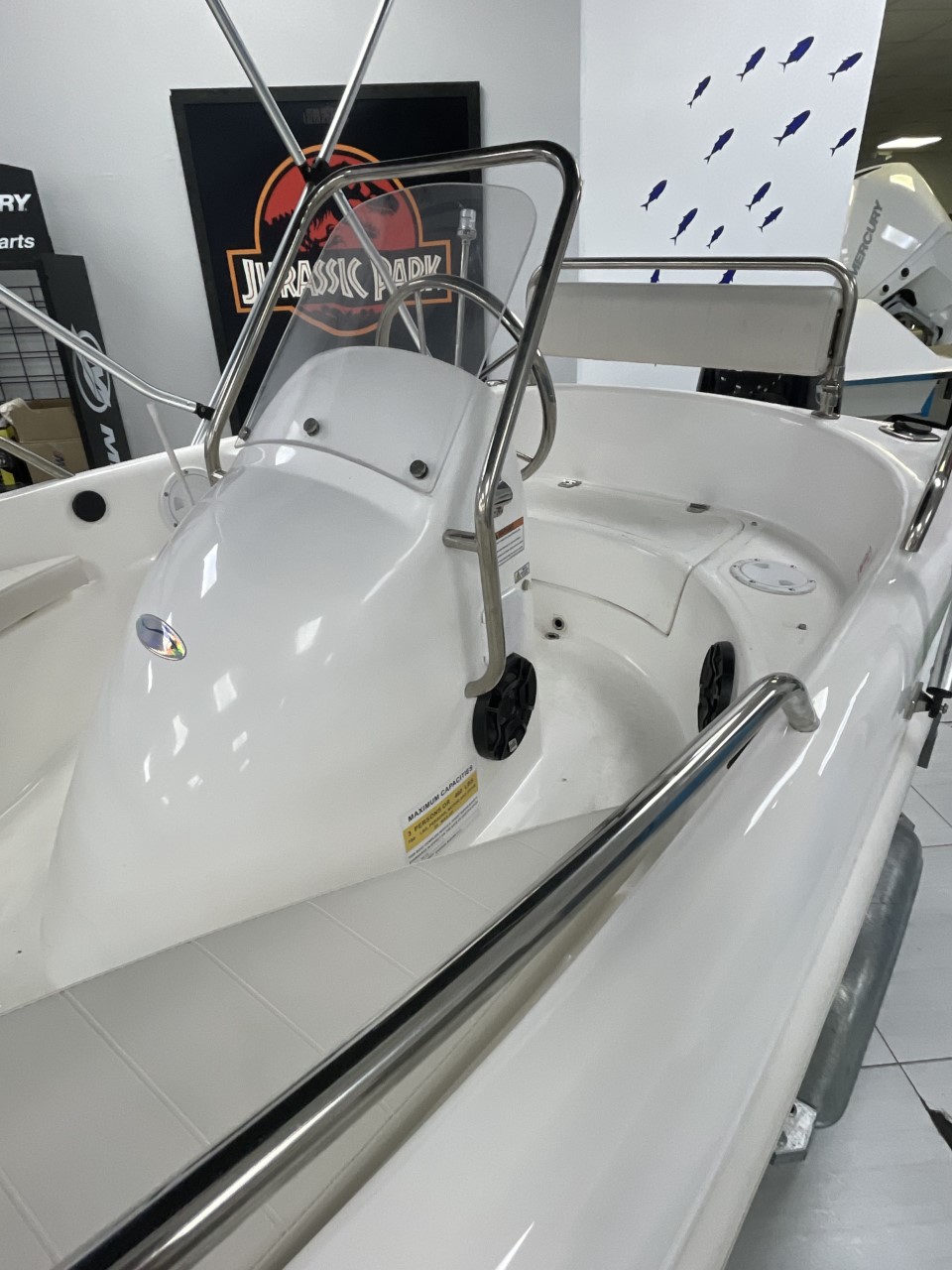

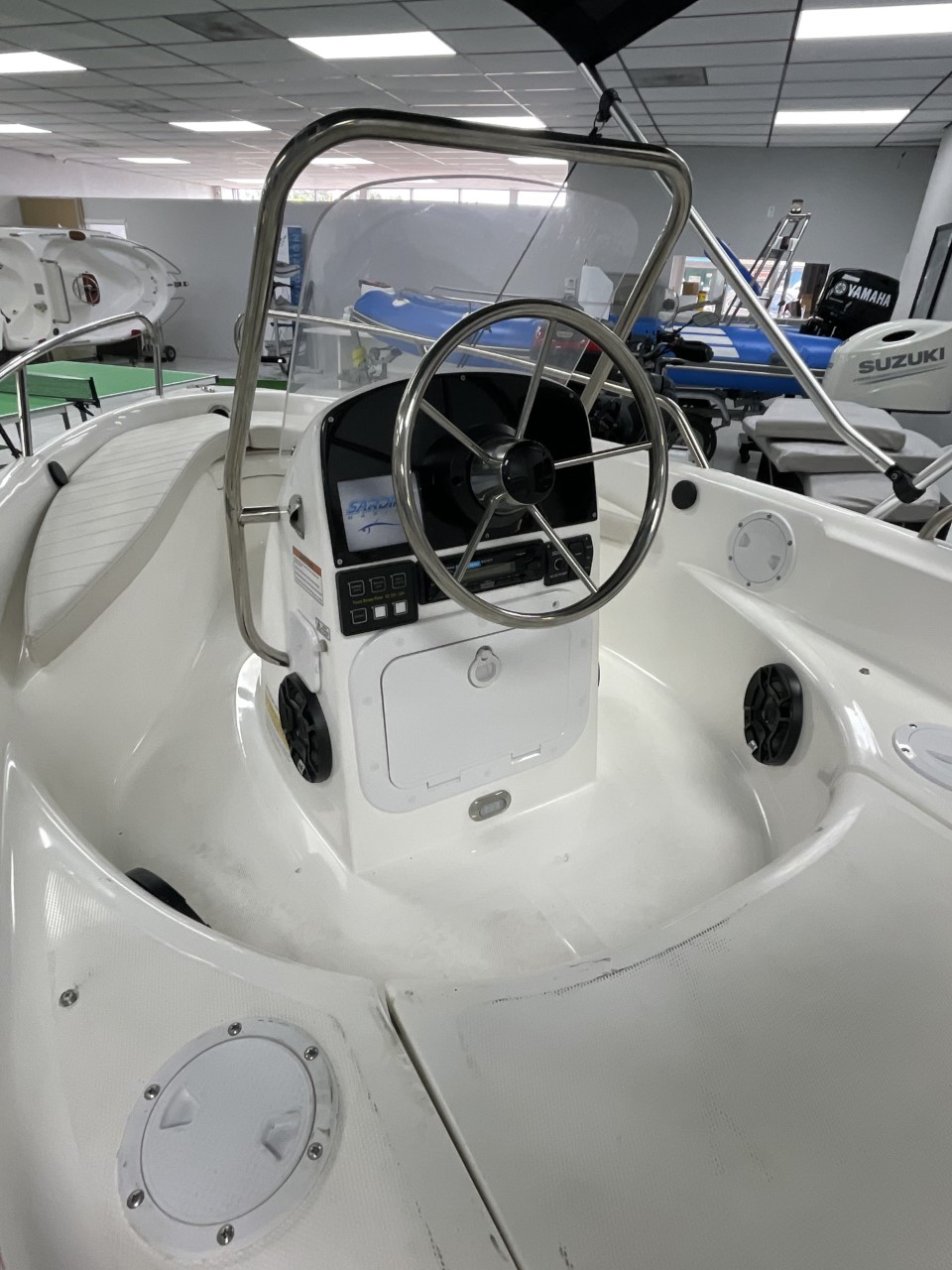

CENTER CONSOLE COMPONENTS
Battery Base with Nylon Strap Holder.

316 SST Tubing Round Windshield.

Console Storage Compartment Lid.

Customable Dashboard Surface.

316 SST Steering Handwheel.

Fiberglass #24 Battery Base.

Box Steering with Cable Set.

Acrylic Windshield.

—–
SEATING AND STORAGE COMPONENTS
316 SST Back Rest Cushion Tilting Frame.

Marine UV Resistant Vinyl Upholstery x3

316 SST Tubing Frame for Pilot Back Rest.

6” Round PVC Access Bilge Pump Hatch.

Bow Anchor Storage Compartment Lid

Transom Storage Compartment Lid

4” Round PVC Access Hatch x2

Front Fiberglas Bench Seat x2

Helm Fiberglass Bench Seat

—–






CONSTRUCTION
Maximum Outboard Weight: 165 Lbs. (75 Kg.)

Hull, Deck and Console Material: Fiberglass.
Flotation; Enclosed Foam Cells Polyurethane.

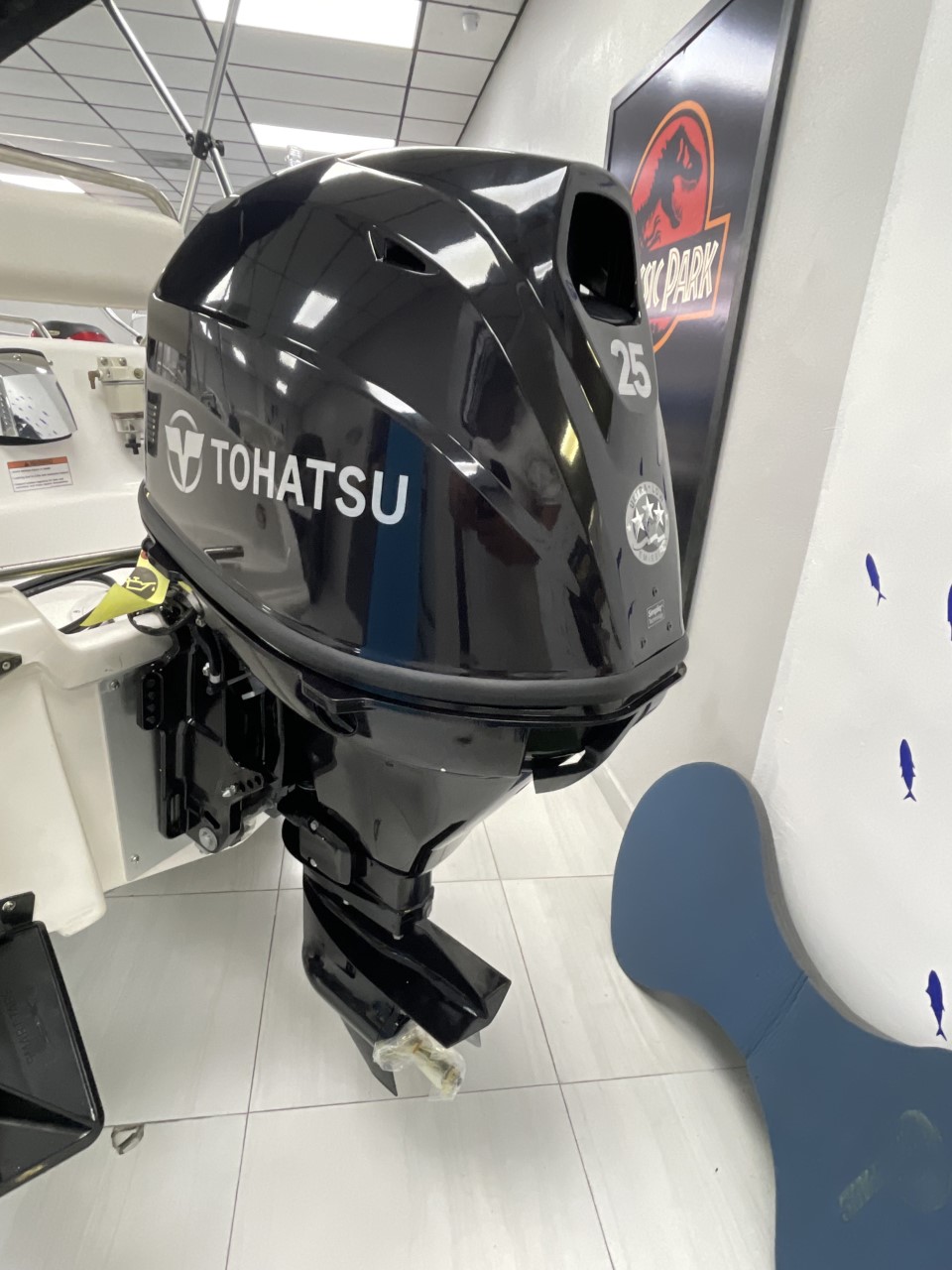

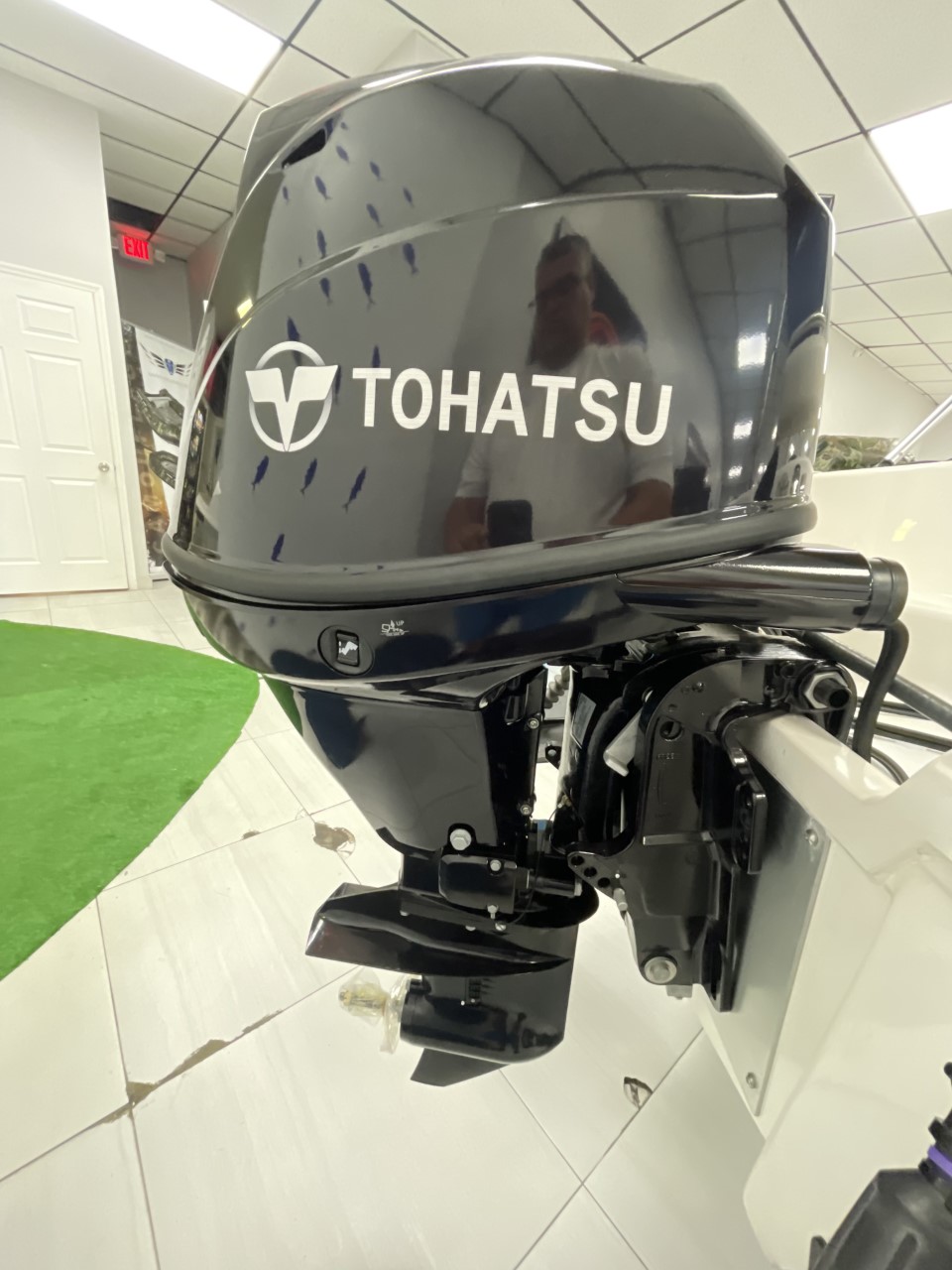

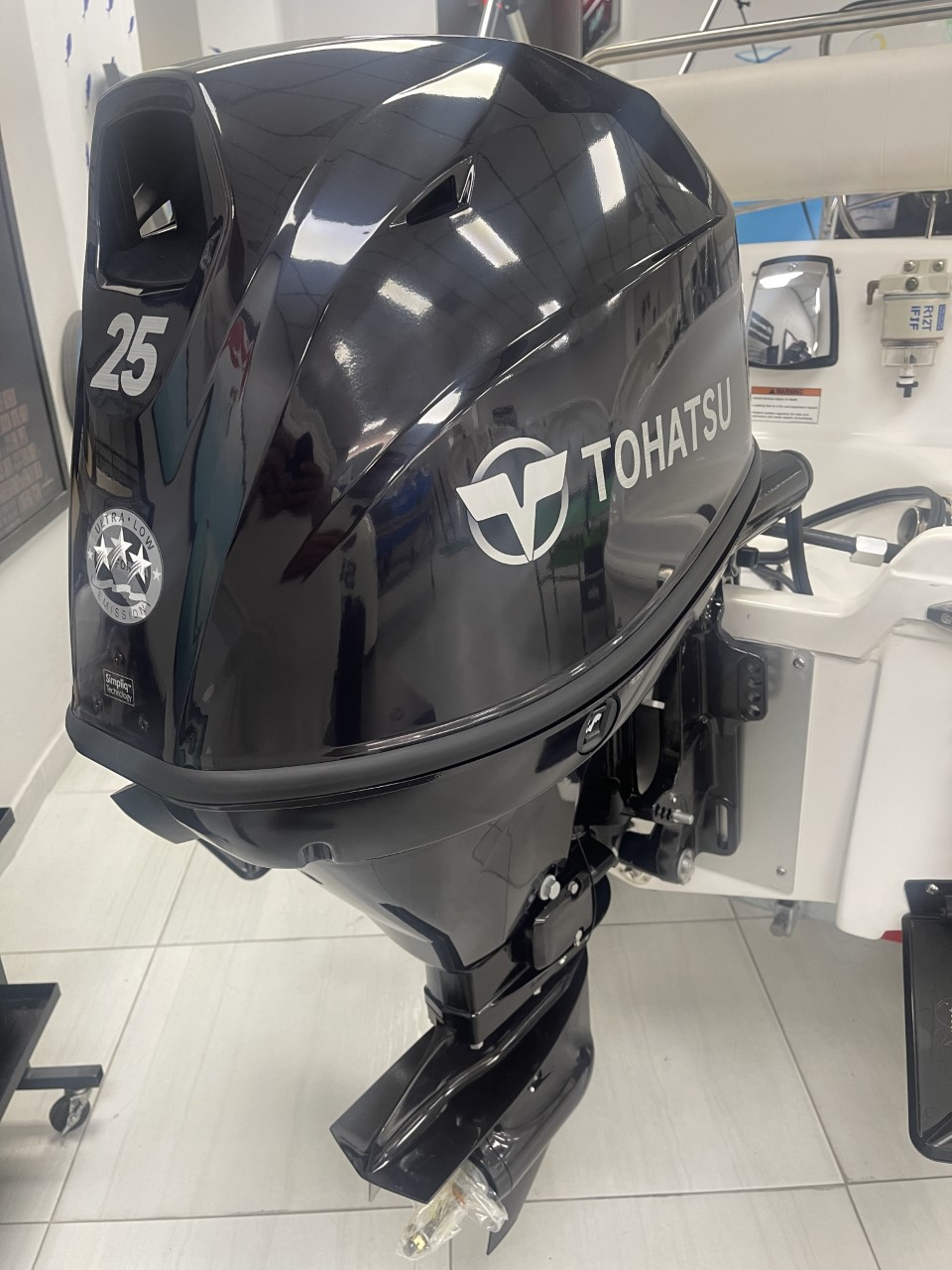

Maximum Recommended Outboard: 25 HP.
Maximum Load Weight: 771 Lbs. (350 Kg.)

Net Boat Weight: 380 lbs. (172 Kg.)


CE& US Coast Guard Regulations.

Seating Capacity: 3 + Gear.


—–
DIMENSIONS



Transom Upper Height: 20-1/2” (0.52 M.)
Transom Lower Height: 17-3/4” (0.45 M.)

Freeboard Height: 21-1/4” (0.54 M.)

Gunwale Height: 17-5/16” (0.44 M.)

Length (LOA): 11.6’ (3.53 M.)

Transom Width: 52” (1.32 M.)

Depth: 27-15/16” (0.71 M.)

Beam Width: 56” (1.42 M.)

Draft: 6-11/16” (0.17 M.)
Dead Rise Degrees: 17⁰
